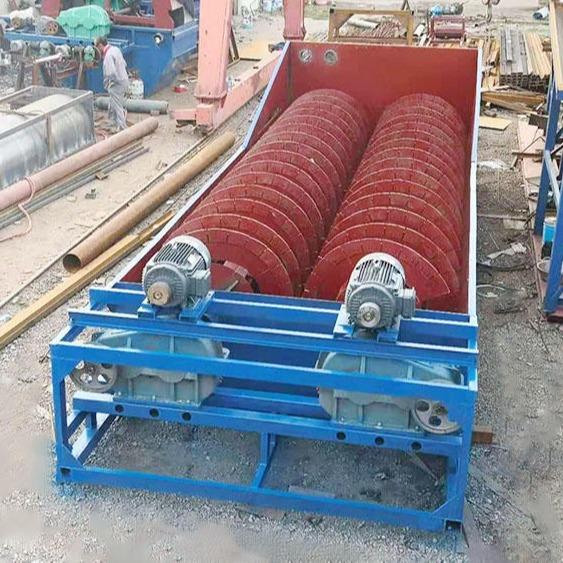

RXLK型螺旋洗砂機 Serew wash-sand machine

一、用途及使用范圍

1、用途：RXLK型螺旋洗砂機適用于建筑工地、砂石廠、玻璃廠、水電站等單位用砂石所需的洗選、分級和脫水，同樣適用于選礦廠，經磨礦后對礦石的分級。

2、適用范圍洗選粒度≤10㎜。

二、工作原理

螺旋洗砂是傾斜布置的水槽下部形成的沉淀，螺旋頭部沒入沉淀池內，螺旋由電機經減速機減速驅動螺旋旋轉，由沉淀池底部多孔板給清洗水，從而完成清洗、脫水和分級三種功能。

清洗：砂石進入沉淀池，在轉動的螺旋作用下，使砂石翻滾并相互磨擦，除去覆蓋砂石表面上的雜質，同時破壞包覆砂石粒的水氣層，以利于脫水，由多孔進入的清水形式上升水流，將比重小的顆粒及其它雜質帶到水面經溢流堰流出，完成清洗作用。

脫水：比重大的顆粒沉入水槽底，在水槽底彎板一邊。則螺旋將砂石向下推進，由于水槽長度超出下部水線，但有一個合適的長度，在向上推進的過程中，除去砂石中多余的水份，脫出的水從槽底另一側排水溝流入沉淀池，砂石則從水槽上端排出。

分級：物料的分級是通過將不符合標準要求的細顆粒溢出堰來實現的，其控制辦法：調整溢流堰高度及調整螺旋轉速。

1．Use and application range

A．Use ：RXLK  type screw sand washer is applied to washing, classification and dewatering of sand-gravel  in construction site, freestone factory, glass factory, hydropower station and  others. It also is applied to classification of ore ground in beneficiation  plant.

B．Applicable range of washing grain size:≤10  mm.

2、Operation Philosophy

Screw sand washing is to form precipitation  in the lower part of inclined water tank and screw is submerged in its front  part in precipitation pond. Screw is driven by motor through speed reducer.  Three functions of washing, dewatering and classification of material are  accomplished by supplying clean water  from porous plate at the bottom of precipitation tank.

Washing：Sand-gravel sent into precipitation tank  is threshed and frictionated under the action of rotation of screw to remove  impurity on surface of the sand-gravel, at the same time, to destroy water-gas  layer containing sand-gravel to be damaged for helping dewatering.  Under the action of rising water flow  from porous plate, grains with small specific gravity and other impurities are  brought to water surface and discharged through overflow weir before washing process  is completed.

Dewatering：Grains with large specific gravity settle  in one side of bend plate of the water tank bottom. Sand-gravel is pushed  downward by screw. Length of water tank exceeds lower water line. With  appropriate length ,excessive water in sand-gravel is removed in the process of  upward movement and dewatered water flows into precipitation tank from drain  channel at another side of water tank bottom. Sand-gravel is discharged from  the water tank through its upper end.

Classification：Fine grains under standard of size are  discharged through overflow weir to make classification of materials with  classification control method being control of height of overflow weir and  rotating speed of the screw.
