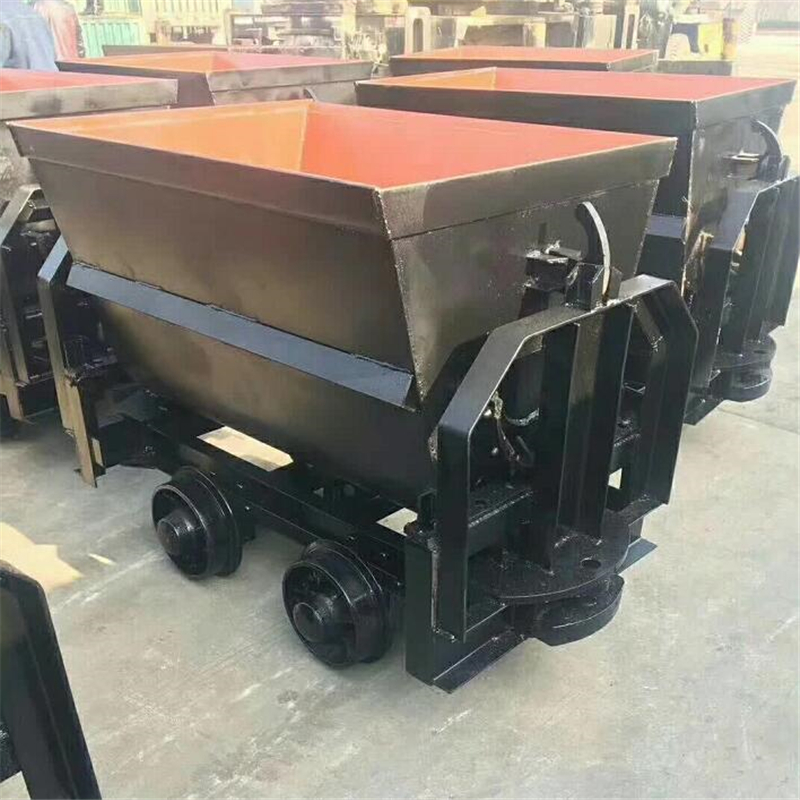

MGC、YGC型固定車箱式窄軌礦車 Bottom type narrow gauge mine car國家行業標準JB/T9027本礦車適用于煤礦、金屬礦山、地下巷道及地表工業場地運輸礦石、廢石等其他物料?？蓲斐闪杏脵C車牽引、卸料用翻車機進行。Such mine cars are used in coal mines, metal mines, underworkings and operat
MGC、YGC型固定車箱式窄軌礦車 Bottom type narrow gauge mine car
國家行業標準JB/T9027
本礦車適用于煤礦、金屬礦山、地下巷道及地表工業場地運輸礦石、廢石等其他物料?？蓲斐闪杏脵C車牽引、卸料用翻車機進行。
Such mine cars are used in coal mines, metal mines, underworkings and operation site to transport ores, barren rock, and other materials. They can be hung in rows and dragged by locomotives. Materials are unloaded through car dumpers.
| 型號規格Model | 容積Volume | 裝載量Loading weight | 軌距Track base | 牽引高度Dragging hight | 牽引力Dragging force | 外形尺寸 Overrall dimensions | 質量Weigh t |
| m3 | t | mm | mm | KN | m | t | |
| MGC0.5-6 | 0.5 | 1 | 600 | 320 | 60 | 1.3×0.8×1 | 0.34 |
| MGC0.7-6 | 0.7 | 1.75 | 600 | 320 | 60 | 1.5×0.9×1.1 | 0.5 |
| MGC1.1-6 | 1.1 | 1.8 | 600 | 320 | 60 | 2×0.9×1.2 | 0.58 |
| MGC1.2-6 | 1.2 | 3 | 600 | 320 | 60 | 1.9×1.1×1.2 | 0.75 |
| MGC1.2-7 | 1.2 | 3 | 762 | 320 | 60 | 1.9×1.1×1.2 | 0.8 |
| MGC1.7-6 | 1.7 | 2.7 | 600 | 320 | 60 | 2.4×1×1.2 | 0.8 |
| MGC1.7-9 | 1.7 | 2.7 | 900 | 320 | 60 | 2.4×1×1.2 | 0.9 |
| MGC2-6 | 2 | 5 | 600 | 320 | 60 | 3×1.2×1.2 | 1.33 |
| MGC2-7 | 2 | 5 | 762 | 320 | 60 | 3×1.2×1.2 | 1.35 |
| MGC3.3-9 | 3.3 | 5.5 | 900 | 320 | 60 | 3.5×1.4×1.3 | 1.56 |
| YGC0.5-6 | 0.5 | 1.25 | 600 | 320 | 60 | 2×0.9×1.2 | 0.61 |
| YGC0.7-6 | 0.7 | 1.75 | 600 | 320 | 60 | 1.5×0.9×1.1 | 0.65 |
| YGC1.2-6 | 1.2 | 3 | 600 | 320 | 60 | 1.9×1.1×1.2 | 0.72 |
| YGC2-6 | 3 | 5 | 600 | 320 | 60 | 3×1.2×1.3 | 1.3 |
| YGC4-7 | 4 | 10 | 762 | 320 | 60 | 3.7×1.3×1.6 | 1.62 |
| YGC4-9 | 4 | 10 | 900 | 320 | 60 | 3.7×1.3×1.6 | 1.7 |
| YGC10-7 | 10 | 25 | 762 | 430 | 79 | 7.2×1.5×1.6 | 7 |
| YGC10-9 | 10 | 25 | 900 | 430 | 79 | 7.2×1.5×1.6 | 7.1 |
