XMQ 系列錐形球磨機，是一種實驗室磨礦設備?？晒嶒炇覞穹ゼ毜V石之用（其中 150 × 50 錐形球磨機亦可用于干磨），適用于冶金、建材、化工、輕工、煤炭、水電、農業和地質實驗工作中的人工重砂、礦石技術加工等磨細物料之用。本產品由原地礦部唯一指定企業生產，執行行業標準。

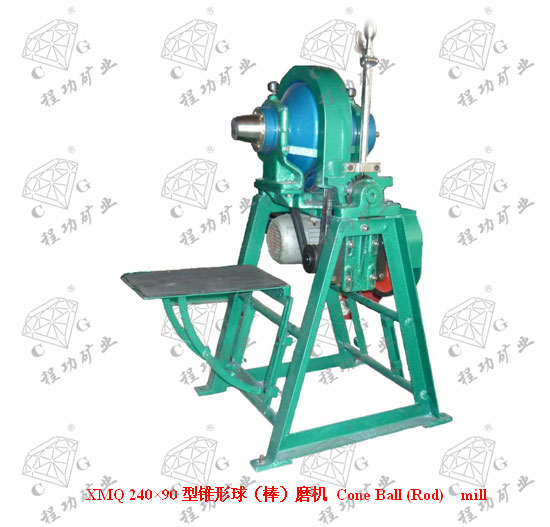

XMQ Series Cone Ball Mill is a lab. grinding equipment for wet fine grinding of ore (150 × 50 Cone Ball Mill also can be used for dry grinding). It is applied in labs for processing and fine grinding of artificial placer materials and ores in metallurgical, building material, chemical, light, coal, water conservancy, electric power, agricultural and geological industries. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
| 型號規格 Model | 單位Uite | XMQ150×50 | XMQ150×100 | XMQ240×90 | XMQ350×160 |
| 錐形筒體尺寸 Drum size | mm | φ150×50 | φ150×100 | φ240×90 | φ350×160 |
| 筒體容積 Volume | L | 1 | 3 | 6.25 | 21.58 |
| 磨礦量Capacity | g | 200 | 400 | 1000 | 4000 |
| 給料粒度Feed size | mm | ≤3 | ≤3 | ≤3 | ≤3 |
| 出料粒度 Output size | mm | ≤0.074 | ≤0.074 | ≤0.074 | ≤0.074 |
| 筒體轉速 Drum speed | r/min | 112 ± 2 | 112 ± 2 | 96 ± 2 | 62 ± 2 |
| 電機功率 Power | kw | 0.25 | 0.25 | 0.55 | 1.1 |
| 外形尺寸Voerall dimensions | mm | 915×530×1160 | 915×750×1160 | 1050×640×1164 | 700×575×1190 |
| 重量 Weight | kg | 90 | 130 | 170 | 300 |
