試驗室XSZ600×300型單雙層振篩機技術參數

單雙層振篩機

一、用途

I. Application

XSZ 600×300單雙層振篩機，適合于冶金、地質、燃化、建工、水泥等部門的科研實驗單位和工廠實驗室，對物料進行篩分之用。

XSZ600×300 single or double screens are used to sieve materials in experimental units and factory laboratories in sectors such as geology, metallurgy, fuel and chemical, building engineering, and cement.

本篩分機，同時可將物料分為二種或三種粒級，如只需篩分二種粒級，可將空白篩框放置上層篩體的下部，支承篩網框作單層使用權用，根據使用需要，可更換四層篩網，則可篩分多種級別的產品。

This type of screen can sieve materials into two or three grain levels. If only two grain levels are needed, the blank sieve frame can be placed under the upper screen to support the sieve frames. According to actual needs, four-layer screens can be used to sieve products of multiple levels.

二、技術參數：

Ⅱ.Technical Parameters

篩網層數 Number		層	2
篩網 尺寸 Screen size	長度	mm	600
	寬度	mm	300
	面積	㎡	0.18
篩孔尺寸 Hole size		mm	Φ7、Φ5
給料粒度 Feed size		mm	30
生產 能力Capacity		t/h	＜5
電動機功率 Power		kw	0.55
重量 Weitght		kg	156

三、篩體結構：

III. Structure

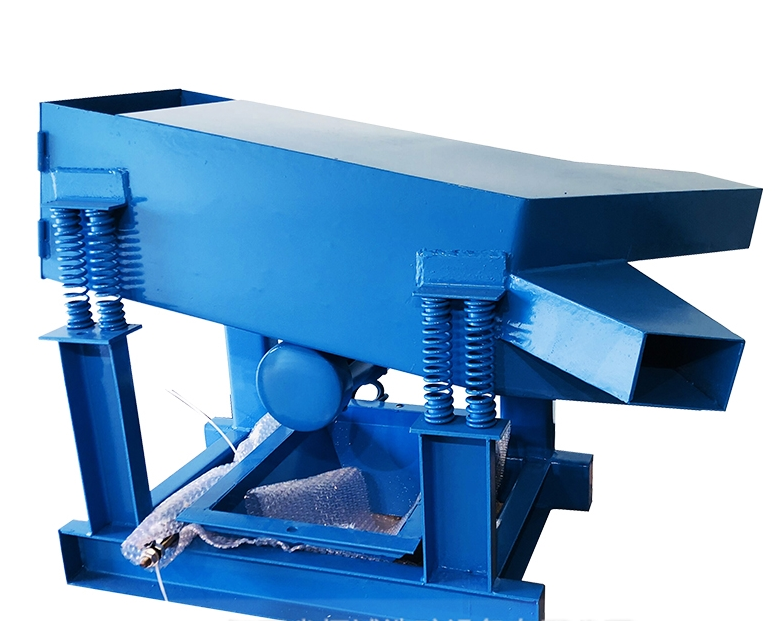

本機結構：主要由篩本、底座、給料漏斗、支撐裝置、活絡腳、支撐彈簧、傾角調整裝置、接料桶、拉緊裝置等部件組成。

This machine is mainly composed of body, base, feed hopper, supporting device, adjustable legs, supporting spring, inclination adjusting device, receiving drum, tension device, etc.
